Getting Form Data from a DocuSign Envelope

Hi @Troy Tessalone

I’ve reviewed similar questions and have already selected the option to download the Form Data. However, the records available to me don’t include any usable form data. That's why I'm testing the Zap while it's published, so I can review its history.

Despite the contract I created having some data, it doesn't appear in the subsequent steps.

@Plinio moraes

Make sure your DocuSign Template is configured with fields having data labels: https://support.docusign.com/s/document-item?language=en_US&bundleId=gmi1660583110357&topicId=yis1665092718418.html&_LANG=enus

@Troy Tessalone

I created a model with all the necessary data fields, each with its own unique label. However, even though I can see the fields in the formData when I check the Zap History in the Data Out of the step, I'm unable to capture them in the next step.

@Plinio moraes

For us to have more info, post screenshots with how your Zap steps are outlined and configured in EDIT mode along with the DATA OUT from the DocuSign step.

@Troy Tessalone

No need, I think I got it.

The custom pill mapping worked for me.

I was setting the wrong node ID in the step input data, thats why it wasnt working.

@Troy Tessalone

I’m able to extract specific keys from the formData, but I’m still struggling to capture all of them at once—especially when it comes to parsing unknown keys that may have been renamed or altered.

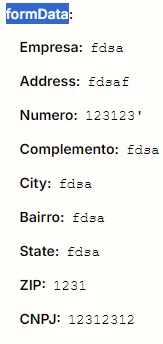

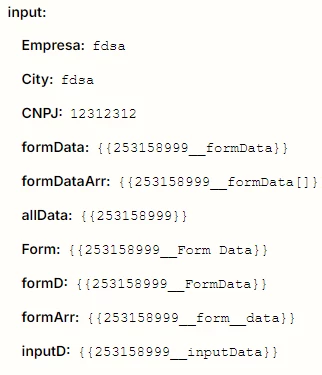

I’ll attach screenshots of the data output from the DocuSign step and the data input for the following step, where I’m using a Code by Zapier event.

@Plinio moraes

Replace 00000 with the ID of the Zap Step.

Replace FIELD with the exact same capitalization as the desired field.

{{00000__formData__FIELD}}

EXAMPLE

NOTE: Double underscores are used to designate nesting.

{{253158999__formData__City}}

@Troy Tessalone

That do the trick, but for specific keys inside the formData.

Is it possible to catch the whole object instead of only specific keys?

@Plinio moraes

Is it possible to catch the whole object instead of only specific keys?

The workaround would be this to get the full raw JSON for a Zap step.
